The lathe has a 10-inch swing and 14 inches between centers plus digital speed control, 24-position indexing and a 110V outlet.

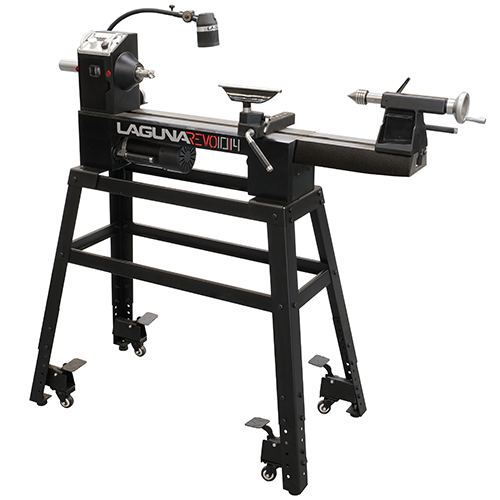

Laguna Tools announced the latest addition to its Revo lathe lineup, the Revo 10|14 benchtop lathe. The company said the model is designed to provide stability, control and precision in a compact 10-inch by 14-inch format.
The Revo 10|14 includes a cast iron headstock and tailstock, a projected bearing cone for wider bearing spacing and digital speed control. It has a 10-inch swing over the bed and 14 inches between centers for small bowls, spindle work and detailed turning projects.
Key features include:
- 10-inch swing over bed and 14 inches between centers
- Cast iron headstock with projected bearing cone
- Cast iron tailstock with engraved self-ejecting quill
- Electronic speed control with three-step pulley
- Digital RPM readout
- 24-position in-head indexing
- 1-inch by 8 TPI spindle and No. 2 MT tapers
- Hardened steel tool rest edge with 1-inch post
- Onboard 110V auxiliary outlet
Included accessories
It ships with a 3-inch faceplate, spur drive, live center, 6-inch tool rest, brass-tipped knock-out bar, banjo, tailstock and essential tools.
The Revo 10|14 is compatible with optional accessories such as an adjustable-height stand and wheel kit, a cast iron bed extension for longer workpieces and LED work lights.
The Revo 10|14 benchtop lathe is designed for users who want a compact lathe for small shops or limited spaces.
Optional accessories
- Caster set
- 10” cast iron extension
- LED SpineLock lamp
- Larger tool rest
- Adjustable height stand
For more information, visit lagunatools.com.
