The idea for the automotive crash-test dummy arose in the 1950s when U.S. Air Force flight surgeon Col. John Stapp realized that more of his fighter pilots were dying in car crashes than from accidents in their hi-tech jet aircraft. The Stapp Car Crash Conferences started that decade and continue today as a venue to share information on the latest research for improving vehicle crashworthiness and occupant safety. (Col. Stapp became an iconic figure to us engineers at White Sands and Holloman AFB for subjecting himself to high-speed sled experiments on the Holloman test track in that bygone era.)

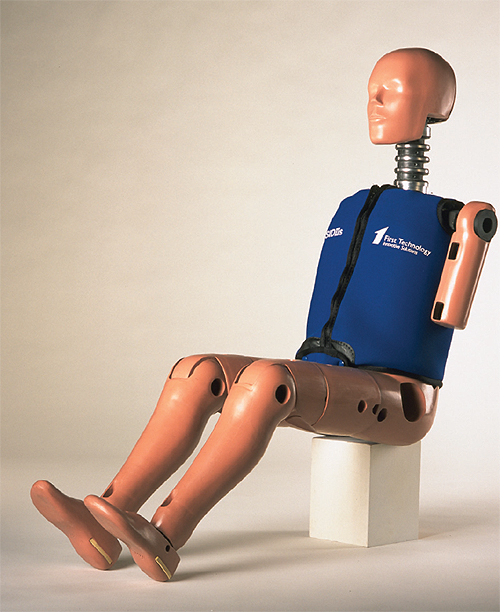

A crash dummy (real at top, FEA virtual
model at bottom) has a complex internal
structure and multiple sensors that
record up to 35,000 data points in a
typical 150 millisecond crash.
A major challenge in the ongoing development of physical crash dummies is the need to reasonably represent how the human body responds in an automotive accident. But physical test dummies are only a part of the process. As computer-aided engineering software and computing resources rapidly advance, there is increasing emphasis being placed on developing ever-more-accurate virtual crash dummies.
Energy absorbing crumple zones and other structural innovations do help protect occupants during car crashes. The addition of air bags, combined with a properly worn lap/shoulder belt, reduces driver deaths by 61% in a frontal crash, according to the National Highway Traffic Safety Administration (NHTSA). But car manufacturers are now also legally obligated to certify the effects of crash events on the humans involved. As a result, crash dummies for front-impact (“Hybrid”), side-impact (SID) and rear-impact (RID) are now in use.
A single physical crash dummy can cost more than $200,000. Made from a variety of different materials, including custom-molded urethane and vinyl, they are based on true-to-life human dimensions. They have ribs, spines, necks, heads and limbs that respond to impact in realistic ways. And they are loaded with sensors (44 data channels on the current front-impact standard, the Hybrid III) that record up to 35,000 items in a typical 100-150-ms crash.
Neck and full-body tests of crash
dummy Abaqus FEA models. Simulia
uses SLM and Isight software to
qualify the results of these tests
across different versions
of FEA.
Simulating the crash simulator
Since a physical crash dummy is a manufactured product like any other, it is feasible to simulate performance with analysis (FEA) software. Given the power of FEA to cost-effectively reduce real-world testing, in the case of expensive crash dummies, and even more expensive vehicle prototypes, it definitely pays to simulate the simulator: You can crash a virtual car and dummy many times, much faster and at far less cost than a single physical test.
Since the goal of simulating a simulator of the complex human body is to closely represent reality, the resulting data must correlate well with physical crash test results. So standardization of FEA models is critical: Each virtual dummy must exhibit responses to crash impact loads and accelerations in a precise, repeatable manner that mirrors what happens to its corresponding physical crash dummy.
What’s more, the simulation must continue to run smoothly as each new and improved version of a physical crash dummy comes on the market and as each new version of crash simulation software is released. Simulation software companies go to great lengths to validate the consistency and accuracy of their software in a process called qualification. This software qualification process involves evaluating large quantities of FEA data, gathered from multiple simulations of various crash scenarios, run on different versions of simulation software and, in turn, correlated with new physical test data.
For example, a team of Simulia engineers qualifies and supports a range of virtual crash dummy models developed for their Abaqus FEA software by First Technology Safety Systems (FTSS), a leader in crash dummy innovation for over 40 years. This group also separately develops and qualifies its own virtual crash dummy models, which are versions of the BioRID (Biofidelic Rear Impact Dummy) and WorldSID (Worldwide Side Impact Dummy).
A typical FEA dummy model will have about 100,000 elements, 150,000 nodes and 500,000 degrees of freedom.
A component test is used to evaluate an individual FEA model of a dummy neck being bent, a lumbar spine being shoved sideways, or a head being dropped on a hard surface. A sub-assembly test assesses the stresses on a full rib cage model hit from the side by a pendulum, with the ribs being individually deformed and possibly intruding into the body cavity. And a full-body test incorporates an entire dummy model being hit from the side by a virtual “solid” barrier or subjected to a simulated sled test. Different testing standards (NHTSA, IIHS, etc.) require a variety of tests.
Manual qualification slows the work
Until recently, dummy qualification took the engineers about four weeks for each updated Abaqus virtual dummy model. (A completely new model, such as a WorldSID, would take far longer than that to create.) “These kinds of challenges meant a lot of man-hours for our team,” says Simulia crash engineering specialist George Scarlat.
Before they could even begin the analysis, Scarlat’s group had to create their databases by manually modifying each of the previous validation test responses to add proper filtering (which has to meet industry standards, such as J211 or ISO 6487) to the variables so that the results between different versions of Abaqus could be compared.
Next, the engineers had to manually launch and run the simulations for the 30-60 tests in the current and previous versions of Abaqus (usually four or five total). Once they completed the various manual analyses, the team then had to run a post-processing step to generate the curve plots describing the analysis results. The amount of data continues to multiply at this point because the results of a single FEA analysis of dummy rib-cage intrusions, for example, could produce up to 200 output variables (forces, displacements, etc.) per test.
Finally, a second post-processing step would take the analysis curves, two at a time, and generate statistical comparisons to quantify the agreement between the same variables in different versions of Abaqus. “So in terms of data you could have 60 tests multiplied by 200 variables multiplied by five different versions of Abaqus,” says Scarlat. “This was a lot of manual work. To meet our deadlines, we really needed to improve the efficiency of the entire process.”
SLM brings the power of PLM
So the group applied a combination of Simulia’s own Simulation Lifecycle Management (SLM) tool, and the company’s Isight software for simulation automation and design optimization, to automate and manage the tasks. The results were dramatic: “By using our own tools, we went from four weeks to four days for the qualification process,” says Scarlat.
The crash dummy qualification team used SLM as the underlying driver for running each of the three main dummy qualification tasks (preprocessing, analysis and postprocessing) sequentially. SLM automatically exported all the necessary files from its database for each task. It then automatically imported back into its database any specified result files after the activity was run.
SLM also leverages the capabilities of Isight, in this case for process automation. The crash group engineers first used Isight to create a workflow that enabled them to simultaneously launch all of the Abaqus analysis tasks on a compute cluster. A second Isight workflow was employed in the final postprocessing task to help determine the correlation between results from different versions of Abaqus software on identical dummy tests. A Python script was used to modify input files, compare results and generate comparison reports. The team ran each project on a Linux 64-bit compute cluster using an average of 1200 CPUs for a full run-through.
“Automating our tasks was a big help,” says Scarlat. “No user intervention was needed during the complicated workflow execution, which resulted in a significant reduction of our process time for the whole project.” His team qualified five FTSS dummies in the first year of using the new workflow—taking about the same number of man-hours needed to finish only one dummy qualification project before.
Watch a ‘59 Bel Air impact a 2009 Malibu at 40 mph
Crash dummies’ lives are nasty, brutish and short. Before they ever get behind the wheel of a car, their heads, chests and limbs are removed, probed, dropped and struck. They are reassembled, dabbed with marking paint and slapped on either side of the head with calibration stickers to help engineers evaluate slow-motion films of crashes. During a test, crash data is recorded in a temporary repository in the dummy’s chest, then downloaded to a computer after. If any dummy part is damaged or fails, it can be swapped for an identical one, but a dummy can only be crash tested a certain number of times before its functional lifespan comes to an end.
Still, crash dummies have served their purpose well: cars today are much safer than those of half a century ago. To mark the 50th anniversary of the formation of the Insurance Institute for Highway Safety, the IIHS filmed a 40 mph frontal offset crash between a 1959 Chevrolet Bel Air and a 2009 Chevrolet Malibu. Thanks to improved safety standards, the crash dummy in the new car fared dramatically better than the one in the older model. View the video at http://www.iihs.org/video.aspx/info/50thcrash
