Highlights:
Start your body-in-white (BIW) planning directly in Teamcenter. Use the weld point creation wizard to create new weld points and assign them to parts via drag & drop. Automatically connect welds to parts based on spatial proximity.
Search for and find required weld points in a configured part structure. Teamcenter provides you with a search list including relevant weld point information. Drag & drop from this list to assign weld points to parts. The Excel Live integration allows additional management and control of weld points via Microsoft Excel.
Open Process Simulate from Teamcenter to assign weld points to operations and these operations to the relevant robots within a 3D environment based on the open JT format. Find the correct weld guns and optimize the positions of the relevant robots.
Siemens says that the software streamlines analysis and improves usability. Define measurement features, as required, from dimensions to pressure, voltage, torque, speed, to any other shop floor measurement. New reports bridge the gap between execution and quality control by increasing visibility into conformance with easily understood representations of real-time production.
The new Gantt chart enables you to sequence your operations and define the interdependencies between them in a graphical way. The Time Data Card enables you to easily define operation times based on the Methods-Time Measurement (MTM) standard or your own time values.

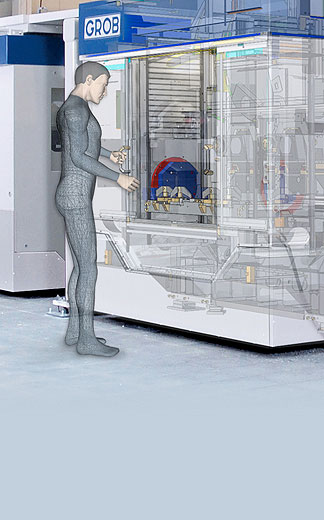

New Chinese Anthropometric data enables you to scale the Jack and Jill human models for the assessment of operations based in China.
Siemens PLM Software
www.siemens.com
