Harley Thermal LLC is proud to announce the release of the SolariaPCB add-on to Solaria, the company’s powerful low cost general purpose thermal simulation software tool.

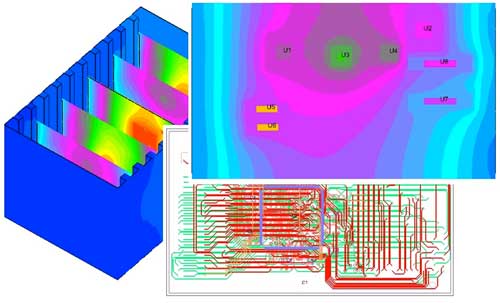

SolariaPCB makes the tedious task of thermal modeling printed circuit boards quick and easy. The ECAD interface brings in every trace, via, component and layer. A component library of over 400 parts is included. SolariaPCB creates a full 3D thermal model of the board and accurately represents every via and trace. Accurately representing all the conduction paths in a PCB model is of particular importance to avionics, satellite and military electronics designers since this is the primary path of heat transfer. Designers of today’s increasingly complex PCB’s, will appreciate the super-fast solvers built into SolariaPCB. Multiple boards can be merged together into a single chassis level model and still solved in minutes.
SolariaPCB
www.solariathermal.com
