Huaxiang designs, Farsoon 3D prints thousands of safety goggles.

This is an important
message to the engineering.com community. Messages that are informative, helpful
and relevant to COVID-19 will be posted here as a special service during our
time of crisis. Messages are not written by engineering.com. If you have a COVID-19 story
or message, please submit
here

COVID-19 is a highly infectious disease mainly transmitted through droplets released into the air by coughing or sneezing. To prevent infection in highly contaminated hospital environments, medical workers who are in close contact with patients must wear personal protective equipment (PPE) including masks, gloves, and respiratory systems to prevent infections transmitted through the nose and mouth.

In addition to the safety PPE equipment listed above, another critical protection equipment are the safety goggles. The conjunctiva membrane, located inside the eyelid to lubricate the eyeballs – is the only exposed mucous membrane of the body. When the eyes are opened the conjunctiva membrane is also exposed, making it an important but often overlooked entrance for viruses. In this case, effective safety goggles are in high-demand to provide full cover and good sealing to the eye area to blocking against hazards including flying particles and liquid splatter from every direction.

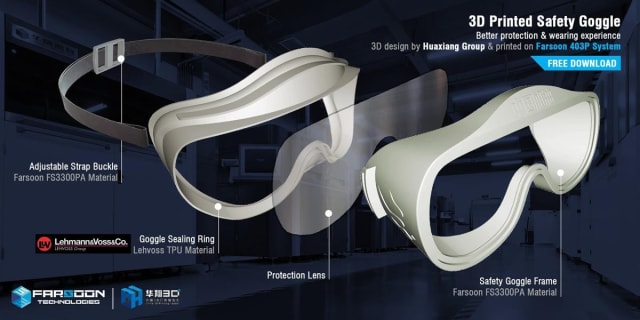

Assembly diagram of additively manufactured safety goggle. (Image courtesy of Farsoon.)

Assembly diagram of additively manufactured safety goggle. (Image courtesy of Farsoon.)

With a solid background in medical 3D printing, Huaxiang experts were able to quickly develop, optimize, validate these safety goggle within only 10 days, and rapidly produced thousands of pairs of products on Farsoon 403P systems. The main goggle frames are produced from Farsoon FS3300PA material, which offers good strength and durability; the sealing rings are made of LUVOSINT TPU material from LEHVOSS – with excellent elongation and flexibility, which ensures better fit and improved sealing protection compare to traditional PC material. The lens is cut from transparent acrylic and coated with an anti-fogging coating. The optimized design also decreases weight while improving comfort for extended periods of wear. The as-printed goggle parts need to be assembled, then disinfected under UV light, high heat and pressure. The design and production of these safety goggle have been registered for Category One Medical Tools in China.

On March 18th, 2020, the first batch of 1000 sets of 3D printed medical safety goggles were donated to the Red Cross Society of China. The second batch will be produced and donated to domestic and overseas countries at the end of March. Last week Farsoon was also contacted by an Italian hospital in need of safety goggles. With the help of Italian service bureau Prosilas Rapid Prototyping, the safety goggles will be produced locally with LUVOSINT TPU material from LEHVOSS.

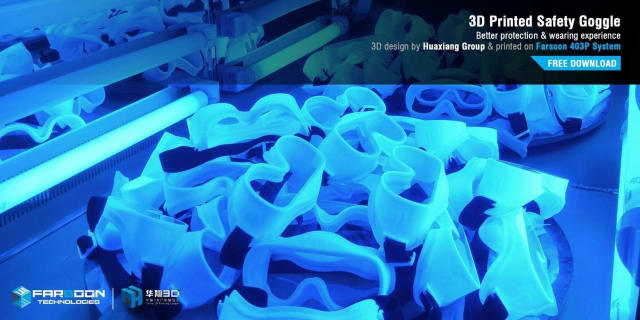

 Assembled safety goggle under UV disinfection. (Image courtesy of Huaxiang Group.)

Assembled safety goggle under UV disinfection. (Image courtesy of Huaxiang Group.)

“At this time of national and global health emergency, Huaxiang Group is proud to take action fighting against COVID-19 using our expertise in medical 3D printing applications” says Jun Li, Medical application Director of Huaxiang Group, “After the goggle, the next project of safety visor is under final testing and validation, we will see it soon applied to better protection of medical workers. We will keep contributing our strength until the epidemic is overcome.”

“This is a great example of the impact 3D printing is making as an alternative supply chain in this time of critical shortage.” Says Don Xu, Global Business Group Director of Farsoon, “by working closely with our partners from material, industries and service, Farsoon is committed to build a more open, connected and capable AM eco- system. This highly-efficient team work ensures faster, best-in-class communication and quality production on Farsoon additive machines.”

The global AM industry has offered a powerful response to the COVID-19 emergency worldwide. We have already created a global resource for AM companies worldwide to share their resources and coordinate their efforts. We are working with partners in Italy, US, UK, France, Germany, Spain Netherlands, Poland and Australia. These goggle designs will now be made available to healthcare facilities worldwide through the dedicated Forum on our 3D Printing Media Network portal,” Said Davide Sher, Co-Founder of 3dpbm, a leading media agency for the AM

industry. “While traditional manufacturers can produce millions of parts, they require much longer times to modify their production lines, while 3D printers can begin producing new, needed parts right away: all they need is the new part’s design and the right material.”

Thanks to Huaxiang Group, now the goggle design files can be downloaded and produced globally. The design is available in two sizes for better fit for all medical workers. The goggle frame and sealing ring can be printable for Laser Sintering (SLS), Fused Deposition Modeling (FDM) and Stereolithography (SLA) technologies, and the protective lens outline is also included for ease of production.

Batch production of 3D printed medical safety goggles were ready for delivery to health facilities. (Image courtesy of Huaxiang Group.)

Batch production of 3D printed medical safety goggles were ready for delivery to health facilities. (Image courtesy of Huaxiang Group.)
