GE Additive Arcam EBM launches D-material support for pure copper and highly alloyed tool steel

GE Additive Arcam announced the general release of development material (D-material) support for pure copper and highly-alloyed tool steel during 2020.  Offering new materials builds on the benefits of electron beam melting (EBM), such as high productivity and deep materials experience with crack prone alloys, but also some of the lesser-known benefits including; the technology’s clean build environment, low oxidation and low reflectivity.

The addition of pure copper and tool steel is a response to increased customer interest. Offered to all customers as a general release on both pure copper and tool steel, a D-material describes the maturity of process parameters for a specific material or family of materials. D-materials meet mechanical requirements for test bars on a limited build envelope to relevant industrial standards.

Obtaining the same properties for complex geometries requires additional development, resulting in an industrialized material (I-material) – with process parameters optimized for production on specific customer applications with mechanical and chemical properties.

The GE Additive AddWorks team is available to provide guidance and support on the right process parameters for their applications and with mechanical and chemical requirements for both materials.

Benefits of pure copper and EBM

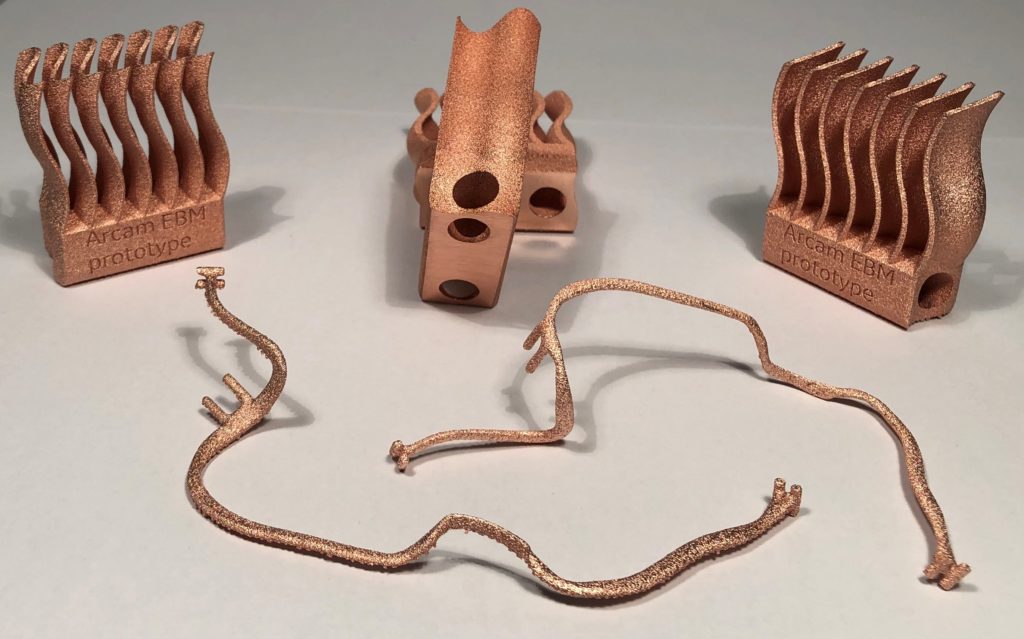

EBM can be used to produce electrically pure copper in geometries that would not otherwise be possible with traditional manufacturing. The ability to produce novel geometries allows for the removal of process steps such as; soldering, joining or bending, where each of these steps compromises the conductivity, and possibly the lifetime, of the component. The result is a higher performance component at reasonable cost.

Copper’s ability to absorb energy varies with the wavelength of the energy source. Pure copper absorbs 80% of the energy from an electron beam, compared to only 2% of the energy from a red laser beam. This provides EBM with an advantage in terms of the ability to melt and ultimately productivity gains.

The vacuum environment in which EBM operates minimizes the oxygen pick-up in copper, allowing for high conductivity copper to be produced. Oxygen reduces the conductivity of copper, while also embrittling the component.

Other additive manufacturing techniques increase productivity in copper production through the addition of alloying elements. Adding alloying elements decreases copper’s ability to conduct.

The ability to produce unique, complex geometries in pure copper without compromising the high electrical, or thermal conductivity is suited to a range of sectors, including the automotive industry, or customers looking at applications for electrical connectors, induction coils and heat exchangers.

Benefits of Tool Steel and EBM
EBM offers technology for additive manufacturing of crack prone alloys. Higher levels of carbon in the steel mix increase the material’s propensity to crack during production with large temperature gradients. This makes high carbon level steels unsuitable for additive manufacturing process with cold ambient temperatures such as laser powder bed fusion (PBF).

EBM technology can process high crack-prone alloys due to high build temperature and achieve the design complexity. The EBM’s vacuum environment suits material protection and mitigates the introduction of impurities.

The Arcam EBM Spectra H system matches materials that require hot processes because of their crack prone nature while also having a large build volume capable of stacking many parts per build and High Power increasing productivity. This results in a significant reduction of process steps going from powder to complex part, in both product development and the production process.
