Energy-Recycling Steps Make Stair Climbing Easier

Spring-loaded stairs store energy on descent and release it on ascent.

Researchers have created a device that makes walking up and down stairs easier. They’ve built energy-recycling stairs that store a user’s energy during descent and return energy to the user during ascent.

The spring-loaded stairs compress when someone comes down the stairs, saving energy otherwise dissipated through impact and braking forces at the ankle by 26 percent. When going up, the stairs give people a boost by releasing the stored energy, making it 37 percent easier on the knee than using conventional stairs. The low-power device can be placed on existing staircases and doesn’t have to be permanently installed.

Each stair is tethered by springs and equipped with pressure sensors. When a person walks downstairs, each step slowly sinks until it locks into place and is level with the next step, storing energy generated by the user. It stays that way until someone walks upstairs. When a person ascending the stairs steps on the sensor on the next tread up, the latch on the lower step releases. The stored energy in the spring is also released, lifting up the back leg.

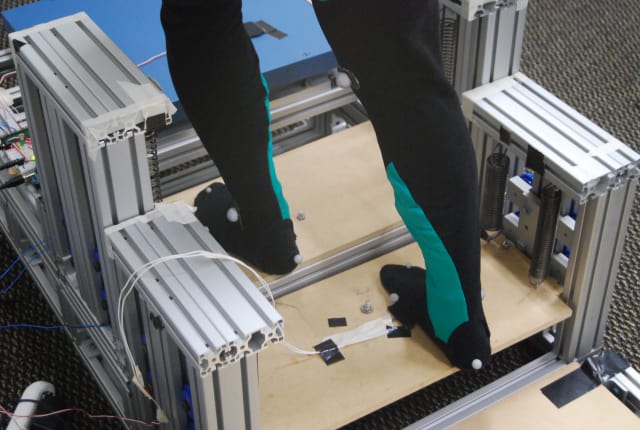

Energy-recycling stairs store a user's energy during descent and return energy to the user during ascent. (Image courtesy of Georgia Tech.)

Energy-recycling stairs store a user’s energy during descent and return energy to the user during ascent. (Image courtesy of Georgia Tech.)

The paper is currently published in the journal PLOS ONE. The authors say the initial idea was to use energy-recycling prosthetic shoes to help people going up stairs.

“Unlike normal walking where each heel-strike dissipates energy that can be potentially restored, stair ascent is actually very energy efficient; most energy you put in goes into potential energy to lift you up,” said Karen Liu, an associate professor in the Georgia Institute of Technology’s School of Interactive Computing. “But then I realized that going downstairs is quite wasteful. You dissipate energy to stop yourself from falling, and I thought it would be great if we could store the energy wasted during descent and return it to the user during ascent.”

Liu is a co-author of the paper with colleague Lena Ting, a professor of biomedical engineering in the Wallace H. Coulter Department of Biomedical Engineering at Emory University and Georgia Tech.

“Walking down stairs is like tapping the brakes of your car while revving the engine,” said Ting. “Your legs use a lot of energy bracing each step to avoid falling too fast. Our stairs store that energy rather than wasting it.”

The researchers didn’t expect, prior to designing the device, that the stairs would actually ease the impact of going downstairs.

“The spring in the stairs, instead of the ankle, acts as a cushion and brake,” said Yun Seong Song, who built the device as a postdoctoral researcher at Georgia Tech. He’s currently an assistant professor at Missouri University of Science and Technology. “The gentle downward movement alleviates work by the trailing ankle, which is what keeps you balanced and prevents you from falling too fast on normal stairs.”

When a person ascending the stairs steps on the sensor on the next tread up, the latch on the lower step releases. The stored energy in the spring is also released, lifting up the back leg. (Image courtesy of Georgia Tech.)

When a person ascending the stairs steps on the sensor on the next tread up, the latch on the lower step releases. The stored energy in the spring is also released, lifting up the back leg. (Image courtesy of Georgia Tech.)

Liu initially got the idea for the project when she attended a conference and saw an ankle brace that stored and released energy. Her 72-year-old mother has no problems walking but has difficulty climbing steps, and Liu knew she wouldn’t wear special sneakers just for stairs. So she decided to make smart stairs that act like the shoe.

“Current solutions for people who need help aren’t very affordable. Elevators and stair-lifts are often impractical to install at home,” Liu said. “Low-cost, easily installed assistive stairs could be a way to allow people to retain their ability to use stairs and not move out of their homes.”

“Maintaining mobility is very much a use-it-or-lose-it thing. It’s important to keep people walking and independent through injury and aging to maximize quality of life,” said Ting.

The researchers think the temporary stairs could also be helpful for those recovering from surgery or pregnant women—people who only need help for short periods of time and don’t need to permanently alter their homes.

Source: Georgia Institute of Technology
