Backscatter Technique Enables HD Video Streaming at 10,000 Times Lower Power

Prototype of a lightweight streaming camera doesn’t need large batteries or a power source.

Wearable cameras such as Snap Spectacles promise to share videos of live concerts or surgeries instantaneously with the world. But because these cameras must use smaller batteries to stay lightweight and functional, these devices can’t perform high-definition video streaming.

Now, engineers at the University of Washington have developed a new HD video streaming method that doesn’t need to be plugged in. Their prototype skips the power-hungry parts and has something else, like a smartphone, process the video instead.

They do this using a technique called backscatter, through which a device can share information by reflecting signals that have been transmitted to it.

“The fundamental assumption people have made so far is that backscatter can be used only for low-data rate sensors such as temperature sensors,” said co-author Shyam Gollakota, an associate professor in the UW’s Paul G. Allen School of Computer Science & Engineering. “This work breaks that assumption and shows that backscatter can indeed support even full HD video.”

The University of Washington engineers behind the low-power, HD video-streaming system. From left to right: Shyam Gollakota, Saman Naderiparizi, Mehrdad Hessar, Joshua Smith.Dennis Wise/University of Washington

The University of Washington engineers behind the low-power, HD video-streaming system. From left to right: Shyam Gollakota, Saman Naderiparizi, Mehrdad Hessar, Joshua Smith. (Image courtesy of Dennis Wise/University of Washington.)

The team presented these findings April 10 at the Advanced Computing Systems Association’s Symposium on Networked Systems Design and Implementation.

In today’s streaming cameras, the camera first processes and compresses the video before it is transmitted via Wi-Fi. These processing and communication components eat a lot of power, especially with HD videos. As a result, a lightweight streaming camera that doesn’t need large batteries or a power source has been out of reach.

The UW team developed a new system that eliminates all of these components. Instead, the pixels in the camera are directly connected to the antenna, and it sends intensity values via backscatter to a nearby smartphone. The phone, which doesn’t have the same size and weight restrictions as a small streaming camera, can process the video instead.

For the video transmission, the system translates the pixel information from each frame into a series of pulses where the width of each pulse represents a pixel value. The time duration of the pulse is proportional to the brightness of the pixel.

The UW team’s low-power prototype can stream 720p HD videos at 10 frames per second to a device, like a laptop, up to 14 feet away.Dennis Wise/University of Washington

The UW team’s low-power prototype can stream 720p HD videos at 10 frames per second to a device, like a laptop, up to 14 feet away. (Image courtesy of Dennis Wise/University of Washington.)

“It’s sort of similar to how the cells in the brain communicate with each other,” said co-author Joshua Smith, a professor in the Allen School and the UW Department of Electrical Engineering. “Neurons are either signaling or they’re not, so the information is encoded in the timing of their action potentials.”

The team tested their idea using a prototype that converted HD YouTube videos into raw pixel data. Then they fed the pixels into their backscatter system. Their design could stream 720p HD videos at 10 frames per second to a device up to 14 feet away.

“That’s like a camera recording a scene and sending the video to a device in the next room,” said co-author and computer science and engineering doctoral student Mehrdad Hessar.

The group’s system uses 1,000 to 10,000 times less power than current streaming technology. But it still has a small battery that supports continuous operation. The next step is to make wireless video cameras that are completely battery-free, said Smith, who is the Milton and Delia Zeutschel Professor for Entrepreneurial Excellence.

The team has also created a low-resolution, low-power security camera, which can stream at 13 frames per second. This falls in line with the range of functions the group predicts for this technology.

“There are many applications,” said co-author and recent UW electrical engineering alum Saman Naderiparizi. “Right now home security cameras have to be plugged in all the time. But with our technology, we can effectively cut the cord for wireless streaming cameras.”

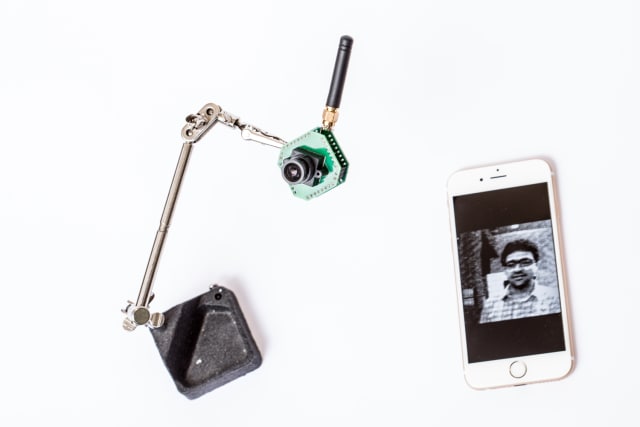

The UW team also created a low-resolution, low-power security camera, shown here on a stand. It can stream at 13 frames per second to another device, such as a smartphone. (Dennis Wise/University of Washington.)

The UW team also created a low-resolution, low-power security camera, shown here on a stand. It can stream at 13 frames per second to another device, such as a smartphone. (Dennis Wise/University of Washington.)

The group also envisions a world where these cameras are smart enough to only turn on when they are needed for their specific purpose, which could save even more energy.

Gollakota is excited the UW research team is at the forefront of the low-power video-streaming field and its impact on the industry.

“This video technology has the potential to transform the industry as we know it. Cameras are critical for a number of internet-connected applications, but so far they have been constrained by their power consumption,” he said.

“Just imagine you go to a football game five years from now,” Smith added. “There could be tiny HD cameras everywhere recording the action: stuck on players’ helmets, everywhere across the stadium. And you don’t have to ever worry about changing their batteries.”

This technology has been licensed to Jeeva Wireless, a Seattle-based startup founded by a team of UW researchers, including Gollakota, Smith and Vamsi Talla, a recent UW alum and co-author on this paper.

This research was funded by the National Science Foundation, the Alfred P. Sloan Foundation and Google Faculty Research Awards.
