Are Crash Test Dummies Going Digital?

Anatomically accurate computational human body models are built from medical scans.

A computational body model developed at Wake Forest School of Medicine

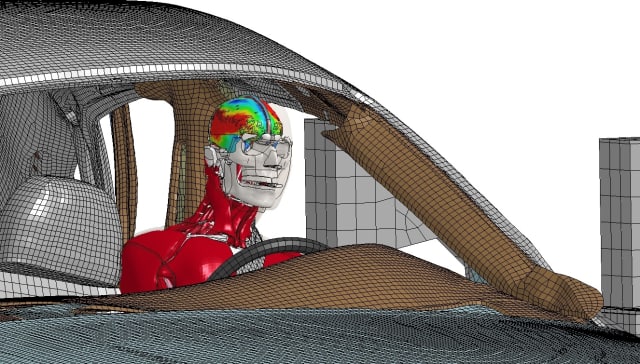

A computational body model developed at Wake Forest School of Medicine “seated” in a virtual car for a simulated crash test. (Image courtesy of Department of Biomedical Engineering, Wake Forest School of Medicine.)

Think of them as digital dummies. Or crash test avatars.

They’re computational human body models, anatomically accurate computer figures built from MRI, CT and other medical scanning techniques to simulate how the body’s bones, organs and connective tissues react to external objects and forces. Over the past decade, these virtual manikins have become valuable tools in injury biomechanics, the multidisciplinary study of how injuries are caused and how they can be prevented or mitigated.

Computational body models have not yet replaced mechanical human substitutes—crash test dummies—in assessing the protective properties of motor vehicles, military equipment and other products. With very few exceptions, physical crash tests are still required to meet regulatory requirements and rating standards. But computerized figures offer many advantages over dummies and are becoming more widely used in a variety of fields.

“Conventional dummies generally have between 55 and 200 sensors that collect data while with these computational models there’s almost an infinite number of points that can provide data on the effects of an impact,” said Scott Gayzik, associate professor of biomechanical engineering at Wake Forest School of Medicine, part of Wake Forest Baptist Medical Center. “Computerized models also have a higher degree of biofidelity – performing like bodies do in real life – and they’re variable; we can ‘morph’ them to represent different body shapes and sizes.”

Because they exist exclusively on computers, body models have an indefinite life span as opposed to mechanical dummies, which last about 10 years on average. And the cost of simulating a car crash or other event on a computer is minimal, whereas a physical test can cost around $30,000 USD.

However, the research and development of an original computational model can be quite expensive, Gayzik said, which is why most of that work is funded by the auto industry and government.

One of the most prominent sponsors is the Global Human Body Models Consortium (GHBMC), an international alliance of seven automakers and one supplier founded in 2006 to consolidate body modeling research and development into a unified effort to advance crash safety technology. The Center for Injury Biomechanics at Wake Forest School of Medicine is the consortium’s integration center, with responsibilities that include collecting data from other sites, developing full-body models and testing their reliability.

Gayzik and Joel Stitzel, chair of biomedical engineering at the School of Medicine, co-directed the team that in 2011 constructed the GHBMC’s first full-body model, of a mid-sized male seated vehicle occupant, in an effort that included researchers at institutions in the United States, Canada, France and South Korea.

The GHBMC now has a “family” of 13 body models of male and female, adult and child vehicle occupants and pedestrians in detailed and simplified versions for use in simulations.

These models can be licensed by academic and commercial users through Elemance, a Winston-Salem-based startup formed by Gayzik and Stitzel in conjunction with the GHBMC and Wake Forest Baptist.

“The vision is that the GHBMC models will become the tools that are used to set safety standards,” Gayzik said, “whether they’re in the automotive, military, protective clothing or sports world.”

Scott Gayzik, associate professor of biomedical engineering at Wake Forest School of Medicine, explains some of the capabilities of a computational body model. (Image courtesy of Department of Biomedical Engineering, Wake Forest School of Medicine.)

Scott Gayzik, associate professor of biomedical engineering at Wake Forest School of Medicine, explains some of the capabilities of a computational body model. (Image courtesy of Department of Biomedical Engineering, Wake Forest School of Medicine.)

In addition to vehicle-related work, Gayzik and colleagues are engaged in two projects with the Defense Department and Army Research Lab.

The first, being conducted solely at Wake Forest, is developing male and female models in different combat positions (such as aiming a rifle while on one knee) for use in simulations to understand soldier vulnerability in various scenarios and how personnel can be better protected.

The second, being led by researchers at John Hopkins University, is developing a biofidelic warrior-representative injury assessment surrogate – that’s Army-speak for crash dummy – capable of predicting specific injury risk to vehicle occupants in live-fire tests, including vertical impacts from below.

While involved in these efforts, Gayzik is looking ahead to working on the next generation of computational body models. He believes the models can be refined to be more flexible in terms of positioning, to better “capture” muscle tension (which, for example, is different in a person braced for a crash than in someone who is relaxed) and to more accurately represent specific populations (such as older adults and people with common conditions like obesity and osteoporosis).

Gayzik also anticipates that simulations using body models will gain wider acceptance as valid tests of the effectiveness of safety systems.

“I think some of the tests that currently use crash dummies will be done with computer models in the near future,” he said.

At present, the European New Car Assessment Program is the only vehicle safety rating organization that recognizes simulation results in its evaluation process, and that’s only for one safety feature, a hood that pops up when a car strikes a pedestrian. (Gayzik and his team are helping this group evaluate its virtual testing protocol.) However, the U.S. National Highway Traffic Safety Administration recently issued a statement saying that evaluations of safety measures for seating configurations in driverless cars “need not be limited to physical testing but can also include virtual test vehicles and human body models.”

“You need a human body model to assess anything virtually – whether it’s a vehicle, seat, flak jacket or football helmet – to see what the human response will be,” Gayzik said. “That’s the core of what we do – develop models that allow people to do human-centered design that will improve safety, prevent injuries and save lives.”
