Siemens Mobility GmbH, part of Siemens AG, opened its first digital rail maintenance center – the Siemens Mobility RRX Rail Service Center. Located in Dortmund-Eving, Germany, the new maintenance depot offers the highest level of digitalization in the rail industry, with advanced FDM 3D printing from Stratasys (Nasdaq: SSYS) at the heart of the depot’s servicing operation.
Siemens Mobility has now eliminated the need for inventory of selected spare parts, reduced the manufacturing time of these parts by up to 95% and can now respond to all internal and customer demands seamlessly.
Renowned as Siemens Mobility’s flagship site, the RRX Rail Service Center is expecting around a hundred trains to enter the depot every month. This level of throughput puts pressure on the supply chain and requires manufacturing solutions that can fulfill the wide-ranging needs of customers quickly and cost-effectively. As a result, the company invested in a Stratasys Fortus 450mc Production 3D Printer to produce replacement parts and tooling on-demand.
“We believe our RRX Rail Service Center is the most advanced train maintenance center in the world,” says Michael Kuczmik, Head of Additive Manufacturing, Siemens Mobility GmbH, Customer Service. “Bringing together a range of innovative digital technologies, we can significantly increase the efficiency of our customer’s rail operations. Stratasys FDM additive manufacturing plays an integral role, enabling us to optimize spare parts for longer life cycles, at reduced cost and in shorter timeframes than ever before.”
Increased customer responsiveness with custom solutions
According to Kuczmik, the ability to 3D print custom replacement parts on-demand has increased its flexibility to meet customer requirements.
“Every train has to go through maintenance several times a year. As you can imagine, all our customers would like this process to be as quick as possible, but they still expect maximum levels of detail, safety and quality in the work we do. We also have to consider unplanned or last minute jobs, and if you look at the different train models and companies we service, this requires a lot of custom solutions. This is where our Fortus 450mc fits, providing us the ability to rapidly and cost-effectively produce one-off, custom production parts,” comments Kuczmik.
Previously, Siemens would rely on traditional methods such as casting to meet customer demands. Taking approximately 6 weeks to manufacture a final custom part using casting resulted in lengthy lead times for customers, and for one-off parts this was financially unviable. To make it cost effective, the team would often cast large volumes, which resulted in lots of obsolete parts.
“Using the Fortus 450mc we can 3D print spare parts in a matter of hours. Parts that took 6 weeks, can now be produced in 13 hours. Within a week, we can iterate and optimize the design and then 3D print a final, custom production-grade part. This has enabled us to reduce the manufacturing time of each part by up to 95%, which has significantly sped up our ability to respond to customers,” says Tina Eufinger, Business Development Additive Manufacturing, Siemens Mobility Division.
Agile production
Beyond 3D printed replacement parts, the team is using Stratasys 3D printing to increase its tooling capabilities.

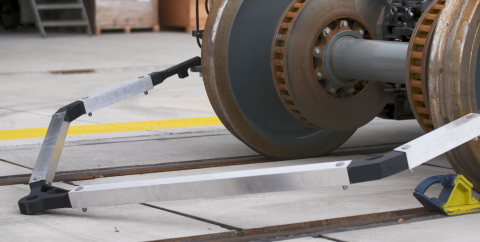

One such example is an essential ‘connector’ tool that is used to maintain train bogies (the chassis or framework that carries the wheelset). Tools for this application are notoriously hard to produce with conventional methods, as they complex shapes and require a high-level of customization. In addition, bogies weigh several tons, therefore tough and durable materials are required to withstand the significant forces when the vehicle is moving or braking.
Siemens is using its Fortus 450mc to turnaround one-off tools customized to each bogie in a matter of hours. To meet the demanding material characteristics required, the team is using industrial-grade ULTEM 9085 thermoplastic material.
“Well-manufactured connectors are essential tools for the effective and safe maintenance of bogies, therefore finding additive manufacturing materials strong enough to withstand such pressures has been an important exercise,” explains Kuczmik. “The ULTEM 9085 material is tough, enabling us to leverage all the customization benefits of 3D printing and replace our traditional manufacturing method for this tooling application.
“The ability to 3D print customized tools and spare parts whenever we need them, with no minimum quantity, has transformed our supply chain. We have reduced our dependency on outsourcing tools through suppliers and reduced cost per part, while also opening up more revenue streams by being able to service more low-volume jobs cost-effectively and efficiently,” he concludes.
